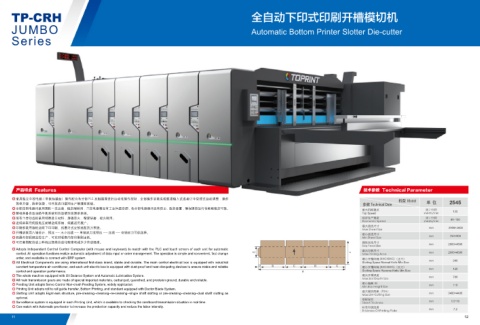

TP-CRH 全自動下印式印刷開槽模切機
JUMBO Automatic Bottom Printer Slotter Die-cutter
Series
產品特點 Features 技術參數 Technical ParameterTechnical Parameter
技術參數
采用獨立中控電腦 ( 帶鼠標鍵盤）操作配合各分部 PLC 及觸摸屏進行自動化操作控制 , 全部操作功能實現數據輸入式或者訂單管理式自動調整 , 操作 機型 Model
簡單方便 , 換單快捷 , 可開放端口聯網生產管理系系統,。 參數 Technical Date 單 位 2545
全部控制電器均采用國際一流品牌 , 穩定耐耐用 , 主控電器箱設有工業恒溫空調 , 各分部電器器均設有防塵,、散熱裝置 , 確保操控運行性能能穩定可靠,。 最大機械速度 張/分鐘
整機具備自動油路平衡系統和自動循環潤滑系系統,。 Top Speed sheets/min 120
所有主傳動齒輪采用特殊進口材料 , 滲碳淬火 , 精度研磨 , 經久耐用。 經濟生產速度 張/分鐘 80-100
送紙部采用伺服免壓前緣送紙系統 , 紙板適用度廣,。 Economic Speed sheets/min
最大送紙尺寸
印刷部采用滾輪送紙下印印刷,，拭墨方式全部選配刮刀系統。 mm 2500×4600
Max.Sheet Size
開槽部采用八軸設計,，預壓 -- 大小壓線 -- 單軸雙刀或預壓 -- 壓線 -- 雙軸雙刀可供選擇,。
最小送紙尺寸
機器內部視頻監控生產 , 可實時觀察內部印刷刷走紙。 Min.Sheet Size mm 750×900
可任意搭配自動上料機以提高自動化程度和減少少勞動強度,。 隔張送紙尺寸
Skip Feed Size mm 2800×4500
Adopts Independent Central Control Computer (with mouse and keyboard) to match with the PLC and touch screen of each unit for automatic 最大印刷尺寸
control. All operation functions realize automatic adjustment of data input or order management. The operation is simple and convenient, fast change E F Max.Printing Area mm 2500×4500
order, and available to connect with ERP system. 最小開槽間隔 (BXCXBXC)（正刀）
All Electrical Components are using international first-class brand, stable and durable. The main control electrical box is equipped with industrial Slotting Space Normal Knife Min.Size mm 240
constant temperature air-conditioner, and each unit electric box is equipped with dust-proof and heat-dissipating devices to ensure stable and reliable D B C B C 最小開槽間隔 (BXCXBXC)（反刀）
control and operation performance. A Slotting Space Reverse Knife Min.Size mm 120
The whole machine equipped with Oil Balance System and Automatic Lubrication System. 最大開槽深度 mm 700
All main transmission gears are made of special imported materials, carburized, quenched, and precision ground, durable and reliable. Max.Slot Depth Size
Feeding Unit adopts Servo Control Non-crush Feeding System, widely application. 最小箱高 (E) mm 110
Printing Unit adopts roll to roll guide transfer, Bottom Printing, and standard equipped with Doctor Blade System. Min.Box Height Size
Slotting Unit adopts Eight-axis structure, pre-creasing--creasing--re-creasing--single shaft slotting or pre-creasing--creasing--dual shaft slotting as 最大模切面積（FXA） mm 2400×4400
Max.Die-Cutting Size
optional. 紙板厚度
Surveillance system is equipped in each Printing Unit, which is available to checking the cardboard transmission situation in real time. Sheet Thickness mm 1.5-16
Can match with Automatic pre-feeder to increase the production capacity and reduce the labor intensity. 標準印版厚度
Thickness Of Printing Plate mm 7.2
